NX 500

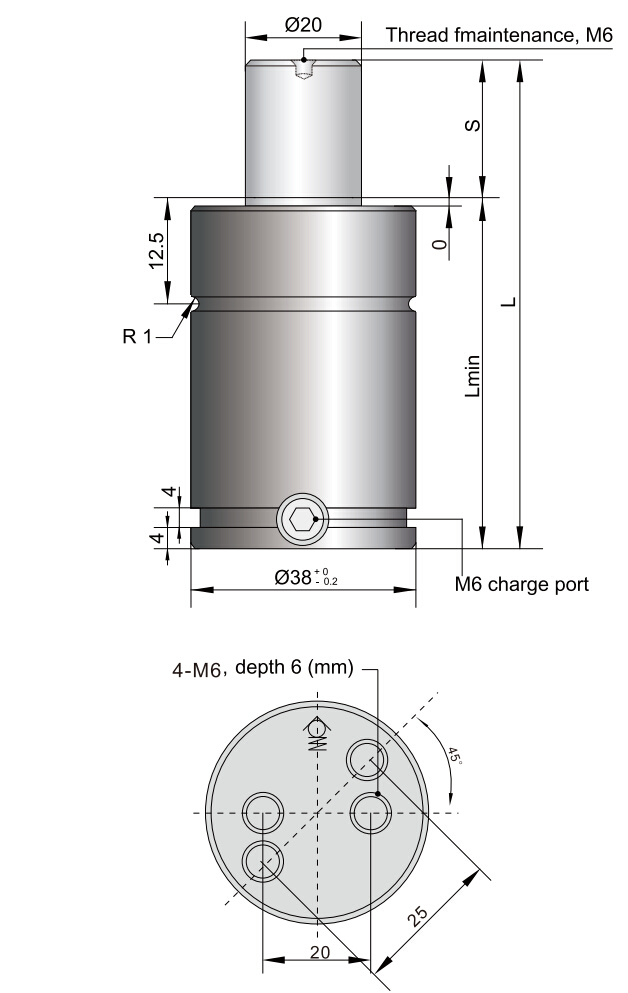

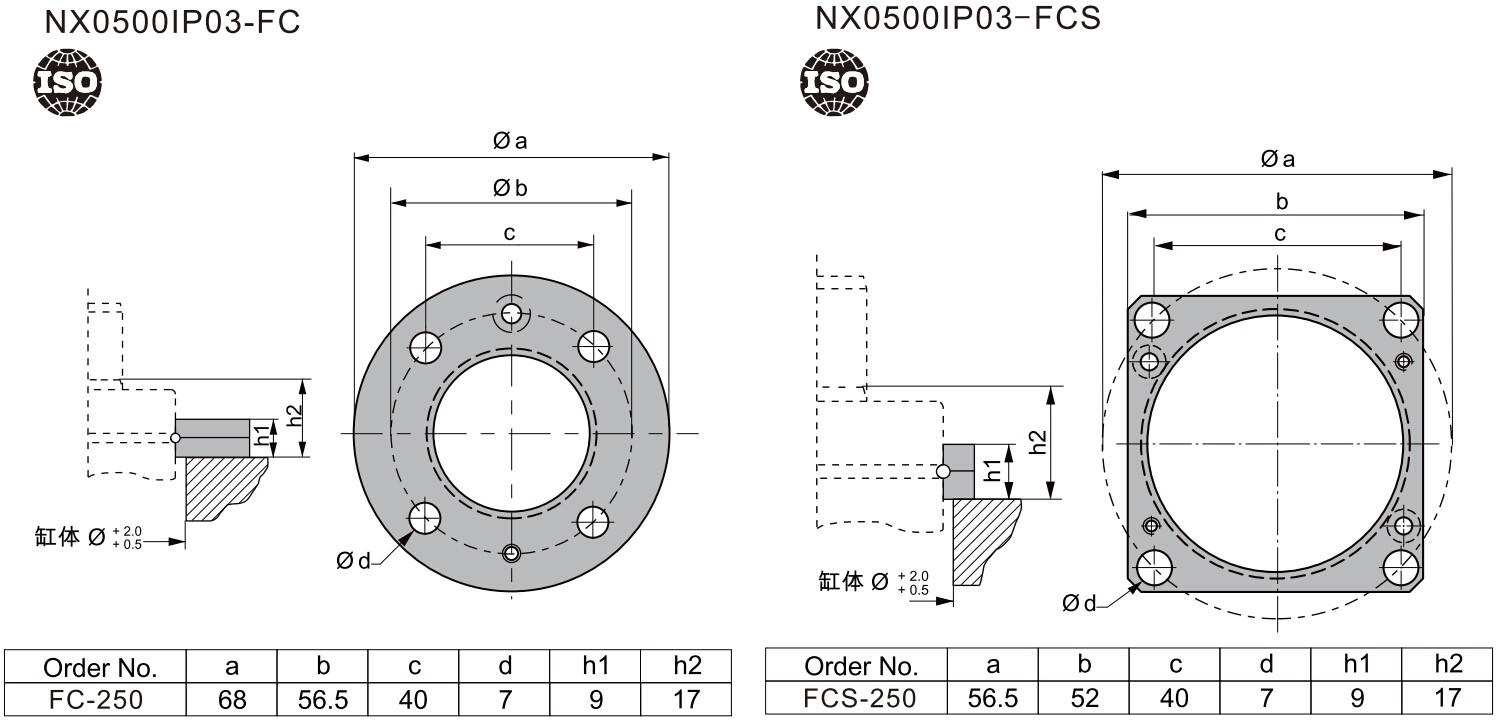

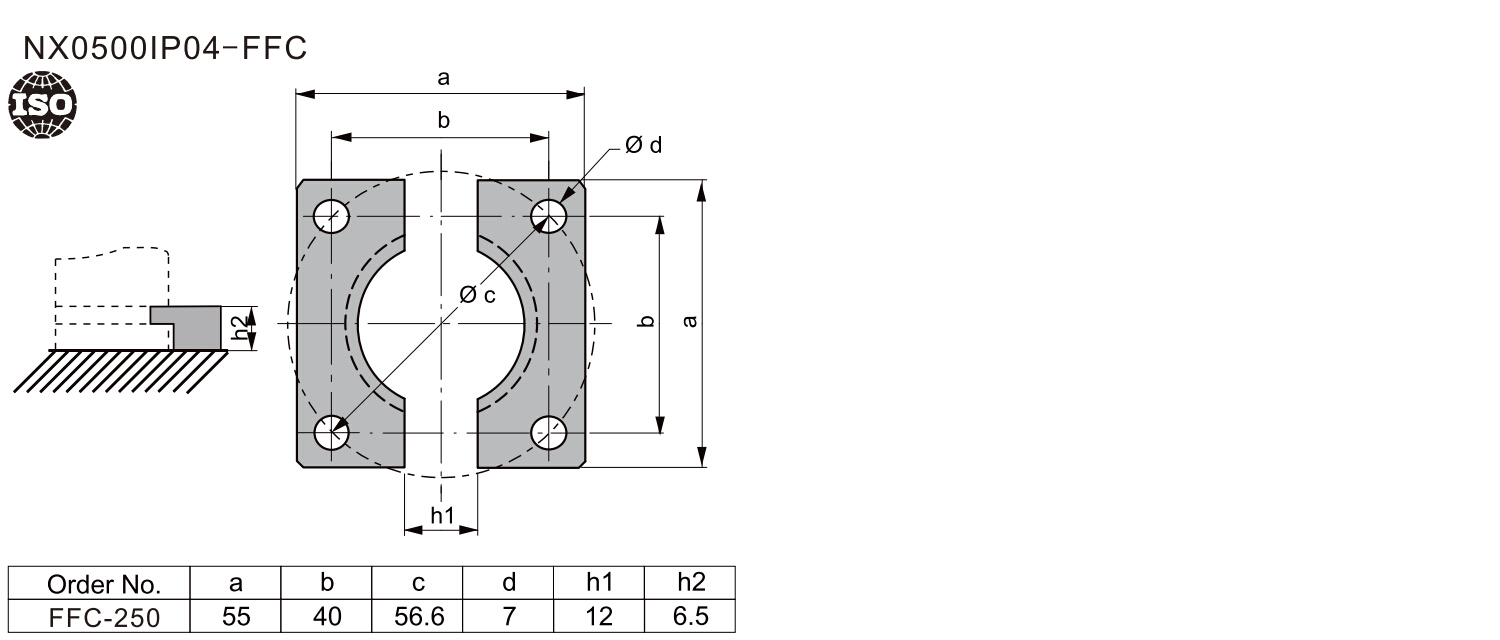

NX series products are extremely compact, including our shortest size but most powerful plunger nitrogen gas spring, which can provide super elastic force. The elastic force of this series of nitrogen gas springs ranges from 1,700N to 200,000N, and the stroke length is between 7 to 125mm. It is provided with a bottom port that can be used for gas filling and also for connecting the pipeline system. This series of springs are provided with a C-shaped groove on the upper side and a C-shaped groove on the lower side; these two grooves are used for threaded bottom holes and with the aid of standard flanges.
