| Inflatable medium | N₂ |
| Inflatable pressure | 20~180bar/2610psi |
| Working temperature | 0~80℃/32-176℉ |
| Pressure increment per unit temperature | ±0.3%/℃ / ±0.009%℉ |
| Recommended maximum stroke working frequency | 40-80spm (20℃) |
| Working speed | 96m/min/315ft/min |
| Built-in valve | 210225 |

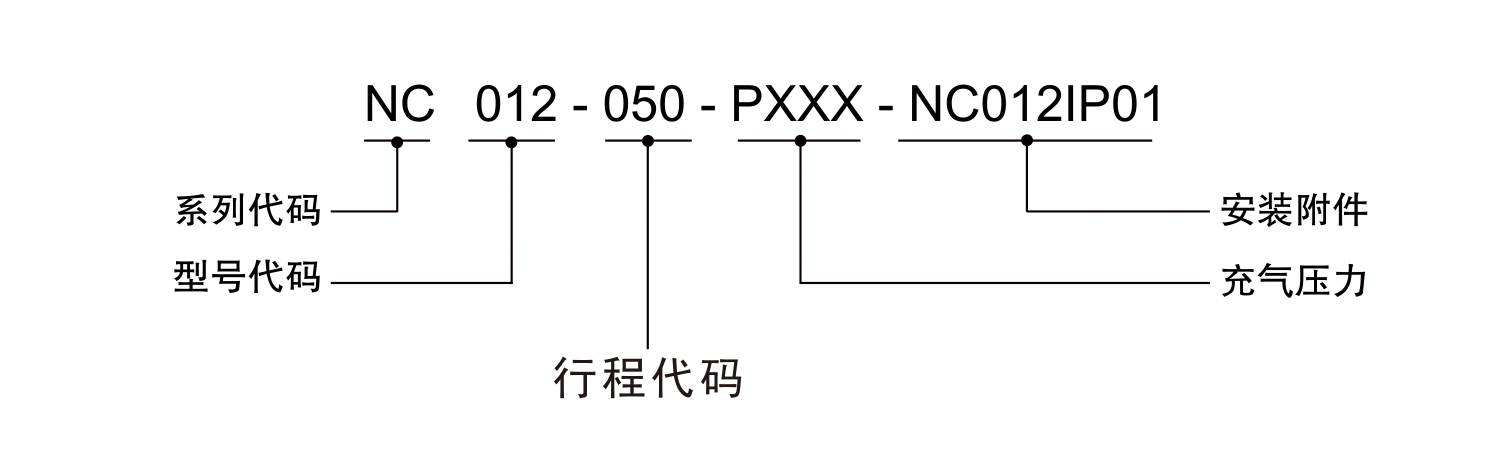

| Order No. | Initial force | End force | Inflation pressure | Color |
| N (20℃) | N (20℃) | bar | Rubber ring | |
| NC012 013 | 130 | 180 | 45 | Green |
| NC012 025 | 250 | 360 | 90 | Blue |
| NC012 038 | 380 | 540 | 135 | Red |
| NC012 050 | 500 | 730 | 180 | Yellow |
| NC012 XXX | 60-500 | 84-730 | 20-180 | Black |

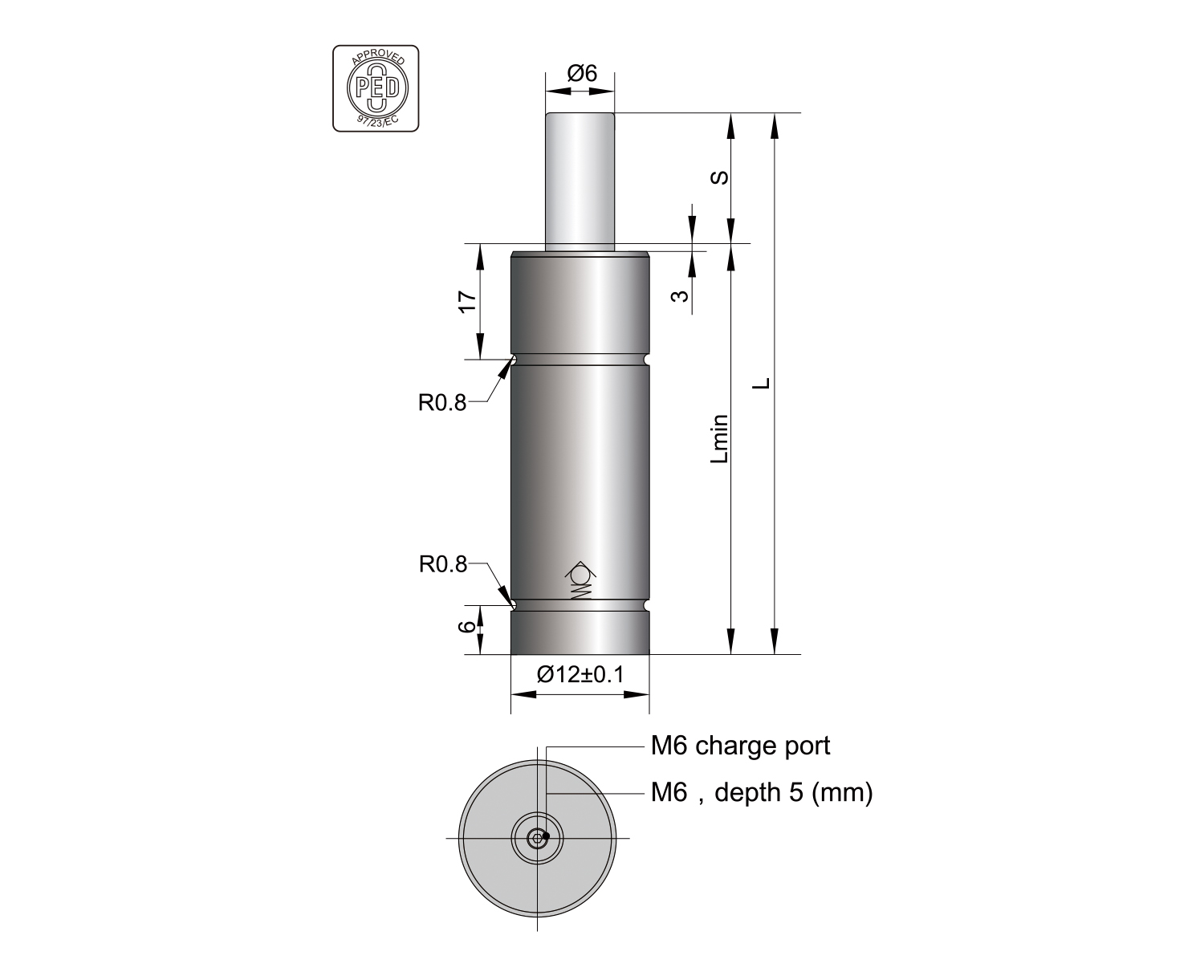

| Order No. | Stroke S | Lmin | L |
| mm | mm | mm | |
| NC012-007 | 7 | 49 | 56 |
| NC012-010 | 10 | 52 | 62 |
| NC012-013 | 12.7 | 54.7 | 67.4 |
| NC012-015 | 15 | 57 | 72 |
| NC012-019 | 19 | 61 | 80 |
| NC012-025 | 25 | 67 | 92 |
| NC012-038 | 38 | 80 | 118 |
| NC012-050 | 50 | 92 | 142 |
| NC012-064 | 63.5 | 108.5 | 172 |
| NC012-075 | 75 | 120 | 195 |
| NC012-080 | 80 | 125 | 205 |
| NC012-100 | 100 | 145 | 245 |
| NC012-125 | 125 | 170 | 295 |
